8 Ports Terminal Box FTTH Fiber Optic Distribution Box

Basic Info.

Model NO.	8 Port Terminal Box
Condition	New
Customized	Available
Business Type	Manufacturer
Transport Packages	Carton
Specifications	320240100mm
Application	FTTH/FTTX
Max Core	8 Core
Adapter or Pigtail	with or Without
Inside	PLC Splitter
Material	ABS
Transport Package	1PCS/Box, Several PCS in One Carton
Specification	8 core fiber terminal box
Trademark	DF
Origin	Shenzhen, China
HS Code	8517622990
Production Capacity	50000PCS/Month

Product Description

Product Description

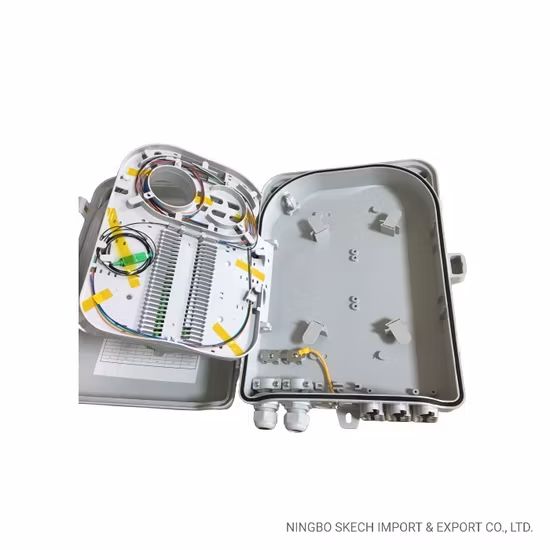

8 Ports Terminal Box FTTH Fiber Optic Distribution Box

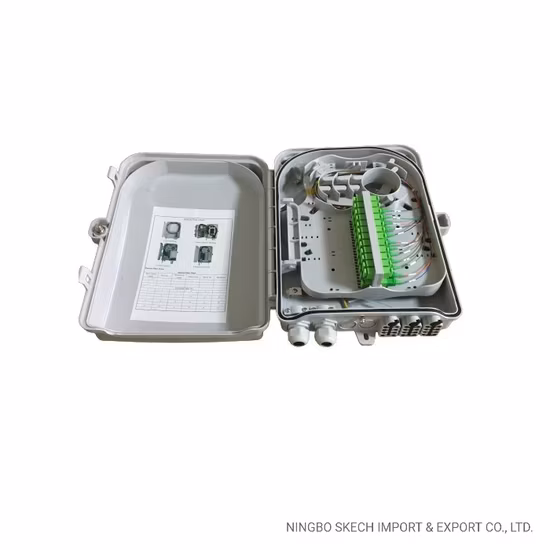

8 Ports Terminal Box FTTH Fiber Optic Distribution Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
Total enclosed structure.
Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
1. Environmental requirement
Working temperature:-40ºC~+85ºC
Relative humidity:≤85%(+30ºC)
Atmospheric pressure:70KPa~106Kpa
2. Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than2MΩ/500V(DC);
IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover.
U≥3000V

Function	FTTH Cable terminal
Material	ABS plastic
Cable Port	8
Installation	Wall mount
Max Capacity of splice	8 Fiber
Adapter & Pigtail	include or not
Packing	Each fiber optic termination box with a carton

Application:
1. Fiber to the building (FTTB)
2. Optical network
3. Local area networks
4. Wide area networks
Configuration table:
Table 1 Model and configuration

Model	Description	Size(Pic 1)	Max Capacity		Installation Size(Pic 2)
Model	Description	ABC(mm)	Splitter	Splice	A*B(mm)
TKS-1606-24A	Distribution Box	320240100	24	24	190*298
TKS-1606-16A	Distribution Box	320240100	16	16	190*298
TKS-1606-12A	Distribution Box	22520065	12	12	168*210

Accessories:
1. Users' Manual*1.
2. Key*1.
3. Accessories Bag * 1.
4. Easy pole ring*2,M6*20mm Bolt*2(Option).

Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable

Quality Control
All products must go through five checks before manufacturing process

1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping

Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice

Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB

Shipping
1.Once confirmed the order, and payment sent after finishing goods.
2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
